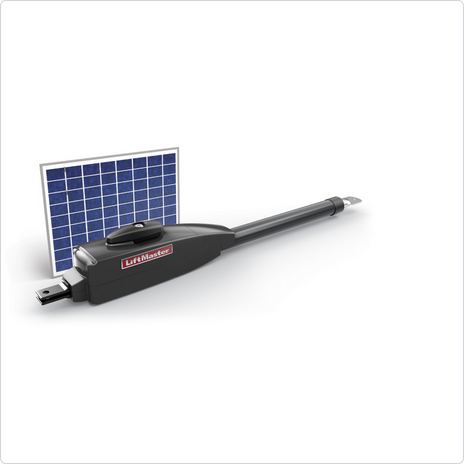

LiftMaster LA412PKGUL Solar Swing Gate Opener
LiftMaster LA412PKGUL Solar Swing Gate Opener
This item qualifies for a 26% solar tax credit after purchase.
Gate Power
-Solar-Ready System: Power gates in areas where power isn’t readily available with a Solar-ready ultra-reliable system; if installed in a residential property, take advantage of the residential energy efficiency property tax credit.
-Sturdy Construction: Heavy-duty cast aluminum housing DC motor.
-Smooth Operation: Get years of reliable use by reducing wear with smooth start/stop operation.
Features
-Security+ 2.0®: Safeguards access to a property with an encrypted signal to virtually eliminate interference and offer extended range with Security+ 2.0.
-Safety Reversing: When detecting an obstruction, the gate reverses with the inherent reversing sensor and the included monitored safety accessories.
-Quick Close Feature: With installation of optional expansion board, prevent unauthorized access with the quick close feature that stops vehicles from tailgating.
-UL Listed: Tested to the most stringent UL 325 industry guidelines; secondary entrapment devices need to be added to meet UL 325 standards; your Installer will recommend suitable secondary entrapment devices for your installation, such as photo eyes or edge sensors.
Includes
Primary Arm LA412DC;
Battery Backup with control board;
Monitored Retro Reflective Photo Eye LMRRUL;
Solar Panel
Gate Connectivity
-Securely Monitor and Control: Securely monitor and control gates and doors with myQ® smartphone app (requires additional Internet Gateway unit);
-Easy Access Control: Integrates easily with LiftMaster Access Control Technology such as CAPXL Connected Access Portal or the CAP2D Door Controller;
-Gate Real-Time Alerts: Know when a gate opens with real-time alerts;
-Close with a Tap: Close any gate with a tap, from anywhere, using the myQ® smartphone app (requires additional Internet Gateway unit).
Notes
Outswing Applications Require the LiftMaster PUSH TO OPEN Bracket Kit Model 50-19503, which is NOT INCLUDED; this bracket kit includes a three-piece bracket set and hardware bag; please add this option below if needed; see the “Product Literature Tab” to review details of the push-to-open bracket kit.
For applications where additional programming features / accessories are needed, including external loops, plug-in loops, auxiliary relays, and inputs, add the Model K1D8387-1CC Expansion Control Board.
*Warning: The capacities stated by the manufacturer are calculated without a wind factor; depending on the force of the wind and the gate design, your gate operator capabilities can be drastically affected up to the point of causing irreversible damage; if you know your location is subject to regular windy conditions, we highly recommend using a pad mount operator such as the CSW24UL; if you are unsure about which operator to choose in regards to your weather conditions, please give us a call at 800-724-4944 to speak to one of our sales advisors; damages caused by wind are not covered under warranty.
Technical Specifications
-Usage Classification: Class I;
-Main AC Supply: N/A - Solar Only;
-System Operation Voltage: 12 Vdc Battery Run / Solar Charge;
-Accessory Power: 12 Vdc, 500mA max for ON + SW (switched);
-Solar Power Max: 12 Vdc at 30 watts max;
-Maximum Gate Weight/Length*:
850 lbs. (385.6 kg) / 10 ft (3.0 m);
750 lbs. (340.2 kg) / 12 ft (3.7 m);
650 lbs. (294.8 kg) / 14 ft (4.3 m);
550 lbs. (249.5 kg) / 16 ft (4.9 m);
90 Degree Travel Time: <23 seconds;
-Maximum Travel Range: 115 degrees;
-Maximum Daily Cycle Rate: 50 cycles / day;
-Maximum Duty Cycle: 4 min on;
-Operating Temperature: -20℃ to 60℃ (-4℉ to 140℉);
-Expansion Board: Optional.
